KJELLBERG

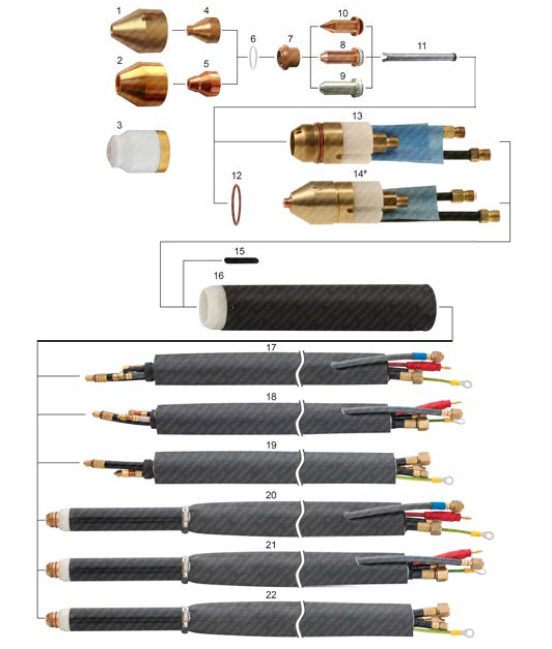

PA-S20W™, PA-S25W™, PA-S40W™, PA-S45W™, PA-S70W™ - PB-S45W™
Periféricos
#
Nº Peça
Referência
Descrição
1
T-8609
11.828.201.151
Nose Cap 6.0
2
T-8617
11.830.301.151
Nose Cap 9.6
3
T-10040
11.828.101.160
Protection Cap, Hand
4
T-8612
11.828.201.413
Nozzle 1.3mm 90A, Air
5
T-8614
11.828.203.410
Nozzle 1.0mm 45A, LIe, Air
T-8615
11.828.203.413
Nozzle 1.3mm 90A, Lde, Air
T-8616
11.828.203.414
Nozzle 1.4mm 130A, Lee, Air
OD
T-8736
11.828.213.613
Nozzle 1.3mm 80A, ArH2
OD
T-8737
11.828.213.614
Nozzle 1.4mm 100A, ArH2
T-8738
11.828.213.616
Nozzle 1.6mm 130A, ArH2
T-8620
11.834.321.410
Nozzle 1.0mm 45A, O_{2}
T-8621
11.834.321.413
Nozzle 1.3mm 90A, O_{2}
T-8622
11.834.321.414
Nozzle 1.4mm 130A, O_{2}
6
T-8601
10.575.036
O-Ring
7
T-8604
11.828.001.153
Swirl Ring
OD
T-10794
11.828.001.153K
Swirl Ring, Ceramic
8
T-8605
11.828.001.3001
Cathode
9
T-4921
11.834.321.3001-AG
Cathode, SilverEX-®
10
T-8735
11.828.211.5001
Cathode, ArH2 (i)
11
T-8603
11.828.001.152
Cooling Tube
12
T-8602
10.575.052
O-Ring
13
T-8926
11.828.301.100
Torch Body, Machine
#14
T-8607#
11.828.201.100
Complete Torch, Machine
OD NS
T-11572
11.828.001.810 OEM
Nose Cap Tool
15
PT-12482
11.828.201.250-3
Tube Pin
16
T-8610
11.828.201.250
Tube Complete, incl. pos. 15
17
KT-1068
11.832.521.701
Cable Leads 10m PB-S45W-1/O 2
KT-1449
K.PB-S45W-1O2.15M.K
Cable Leads 15m PB-S45W-1/O 2
18
T-13237
11.832.501.700
Cable Leads 6m PB-S45W-1/L
KT-1468
11.832.501.701
Cable Leads 10m PB-S45W-1/L
KT-1373
K.PB-S45W-1L.15M.K
Cable Leads 15m PB-S45W-1/L
KT-1516
K.PB-S45W-1L.17M.K
Cable Leads 18m PB-S45W-1/L
19
KT-1473
11.831.601.700
Cable Leads 6m PB-S45WH/L
KT-1296
11.832.401.701
Cable Leads 10m PB-S45W/L
KT-1322
K.PB-S45W-L.15M.K
Cable Leads 15m PB-S45W/L
20
KT-1208
11.832.521.006
Torch with Leads 6m PB-S45W-1/O_{2}
KT-1255
11.832.521.010
Torch with Leads 10m PB-S45W-1/O_{2}
KT-1490
K.PB-S45W-1L-O2.15M
Torch with Leads 15m PB-S45W-1/O_{2}
21
KT-1230
11.832.501.1015
Torch with Leads 1.5m PB-S45W-1/L
KT-1413
11.832.501.006
Torch with Leads 6m PB-S45W-1/L
KT-1254
11.832.501.010
Torch with Leads 10m PB-S45W-1/L
OD
KT-1272
K.PB-S45W-1L.15M
Torch with Leads 15m PB-S45W-1/L
22
KT-1402
11.832.401.006
Torch with Leads 6m PB-S45W/L
KT-1116
11.832.401.010
Torch with Leads 10m PB-S45W/L
KT-1054
K.PB-S45W-L.15M
Torch with Leads 15m PB-S45W/L
KT-1356
K.PB-S45W-L.20M
Torch with Leads 20m PB-S45W/L
NS
KT-1417
K.PB-S45W-1L-O2.20M
Torch with Leads 20m PB-S45W/L-1/O_{2}
Different types of cable leads available on request
* FULLY INTERCHANGEABLE WITH ORIGINAL PARTS, BUT DIFFERS FROM ORIGINAL DESIGN
** A UNIQUE DESIGN WHICH ENHANCES PERFORMANCE AND DIFFERS FROM OEM DESIGNS.
a, b, c, d. – This symbols always point to the part/s which must be used only as a set with another pointed part/s.
O.D.– ON DEMAND – We do not keep these parts in stock, cost is set according to the ordered quantity, delivery time may differ from standard products.
(i)/(ii) – Information about limited distributing of marked part on specific market.
! – Ohmic contact wire is not part of the cable leads.
!!! – Demo is inoperative, for exhibition purposes only!
NS – NOT SHOWN IN THE PICTURE
