Hypertherm

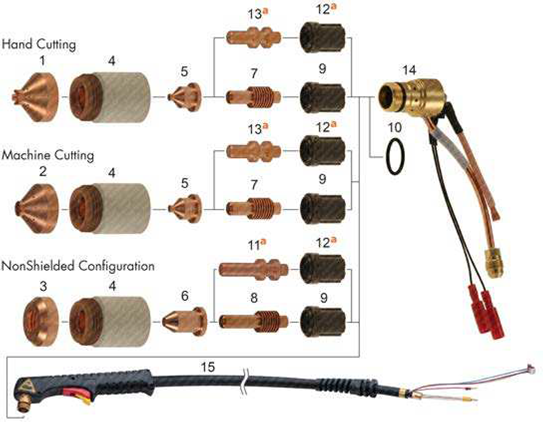

POWERMAX® 600 - PAC®121T/M
Periféricos
#
Nº Peça
Referência
Descrição
*1
T-9827*
120828-UR
Shield 40A, Hand
*2
T-10727*
120827-UR
Shield 40A, Machine
3
T-1564
120303
Deflector
4
T-12045
120600
Retaining Cap
5
T-2847
120826
Nozzle 40A
6
T-3418
120606
Nozzle 35A, Extended
7
T-3419
120573
Electrode
8
T-2298
120574
Electrode, Extended
9
T-2230
120576
Swirl Ring
OD 10
T-0038
044016
O-Ring
a11
T-4451
120574-UR
Electrode, Extended, Long Life
a12
T-4453
120576-UR
Swirl Ring, Long Life
a13
T-4450
120573-UR
Electrode, Long Life
14
T-10269
120570
Torch Main Body with Safety Switch
OD NS
KT-1334
129476
PAC®123T Cable Leads, Hand 7.6m (25’)
15
KT-1333
086002
PAC®123T Hand Torch with Lead 7.6m (25’)
NS
KT-1448
086024
PAC®123T H. Torch with Lead 7.6m (25’), Centr. Conn.
* FULLY INTERCHANGEABLE WITH ORIGINAL PARTS, BUT DIFFERS FROM ORIGINAL DESIGN
** A UNIQUE DESIGN WHICH ENHANCES PERFORMANCE AND DIFFERS FROM OEM DESIGNS
a, b, c, d. – This symbols always point to the part/s which must be used only as a set with another pointed part/s.
O.D.– ON DEMAND – We do not keep these parts in stock, cost is set according to the ordered quantity, delivery time may differ from standard products.
(i)/(ii) – Information about limited distributing of marked part on specific market.
! – Ohmic contact wire is not part of the cable leads.
!!! – Demo is inoperative, for exhibition purposes only!
NS – NOT SHOWN IN THE PICTURE
