Hypertherm

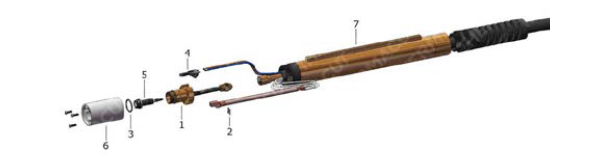

POWERMAX® 1000 / POWERMAX® 1250 - T60™/T80™ HAND TORCH​

Periféricos

#

Nº Peça

Referência

Descrição

*1

T-10281*

128564-UR

T60™/T80™ Torch Body Kit (incl. items 1, 2, 3, 5)

2

T-10237

027889 OEM

Retaining Clip

3

T-4510

058519

O-Ring

a 4

T-10615

128639-UR

TMT Cap-off Sensor Replacement Kit with Screws

*5

T-10253*

128521-UR

T60™,T80™/T60M™,T80M™

a 6

T-10623

128644-UR

TMT Handle Kit with Screws

a 7

T-10849

T-10849

Trigger + Switch

4, 6, 7

T-10838

T-10838

T60™/T80™/T100™ Handle Repl. Assy

* FULLY INTERCHANGEABLE WITH ORIGINAL PARTS, BUT DIFFERS FROM ORIGINAL DESIGN
** A UNIQUE DESIGN WHICH ENHANCES PERFORMANCE AND DIFFERS FROM OEM DESIGNS
a, b, c, d. –  This symbols always point to the part/s which must be used only as a set with another pointed part/s.
O.D.– ON DEMAND – We do not keep these parts in stock, cost is set according to the ordered quantity, delivery time may differ from standard products.
(i)/(ii) – Information about limited distributing of marked part on specific market.
! – Ohmic contact wire is not part of the cable leads.
!!! – Demo is inoperative, for exhibition purposes only!
NS – NOT SHOWN IN THE PICTURE
