Hypertherm
HD®1070/HD®3070 HyDefinition® - PAC®182/PAC®186/PAC®190

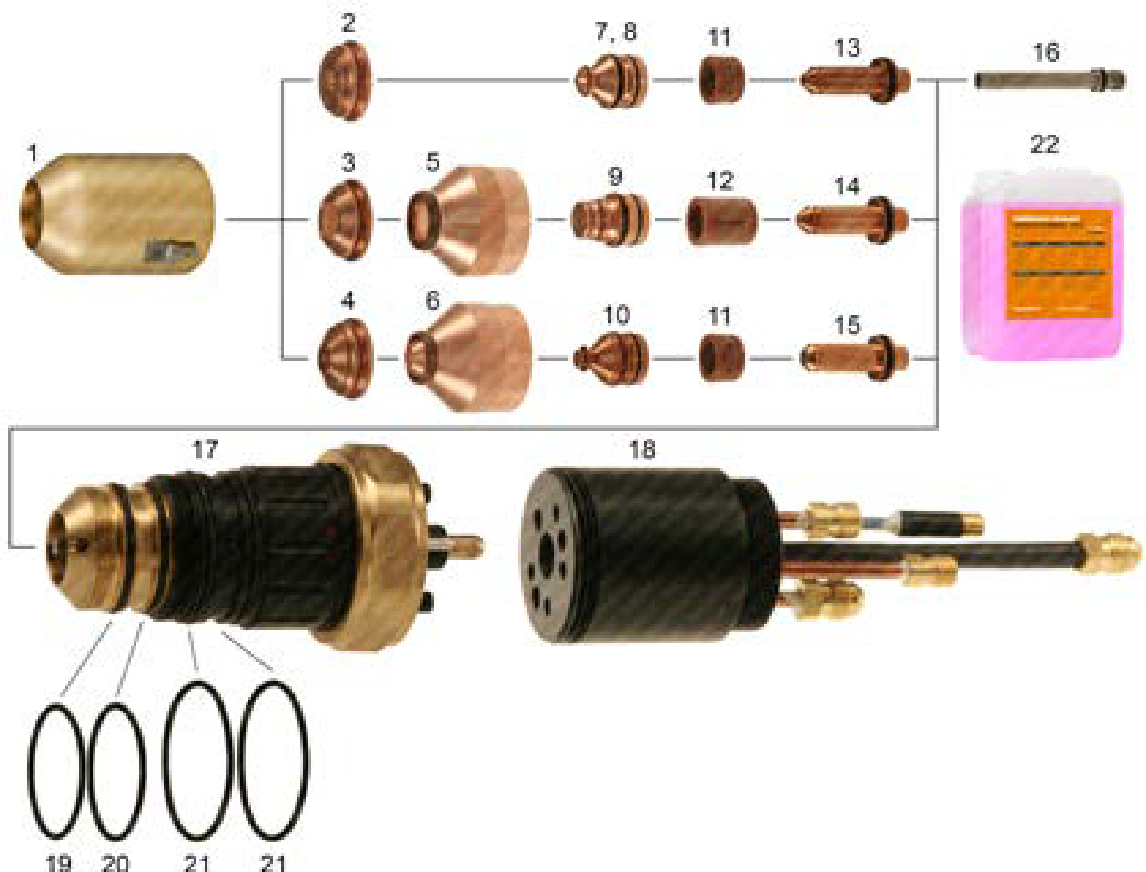

Periféricos
#
Nº Peça
Referência
Descrição
1
T-2828
20687
Shield Cap, with IHS Tab
2
T-8046
20671
Shield 30–50A MS
3
T-8047
20796
Shield 70A MS/SS
4
T-8048
120273
Shield 100A MS
5
T-8050
20795
Inner Retaining Cap 50–70A MS, SS
6
T-8051
120266
Inner Retaining Cap 100A MS
7
T-8053
20645
Nozzle 30A MS
8
T-8054
20646
Nozzle 50A MS
9
T-8055
20647
Nozzle 70A MS, SS
10
T-8056
120272
Nozzle 100A MS
11
T-8057
20637
Swirl Ring 15–100A MS
12
T-8058
20789
Swirl Ring 70A MS/SS
13
T-8060
120111
Electrode 15–30A
14
T-8061
120112
Electrode 70A MS/SS
15
T-8062
120410
Electrode 100A MS
16
T-8100
120377
Tube, Water Electrode Cooling, PAC®186
17
T-8063
120349
Torch Main Body, PAC®186
18
T-8094
28855
Assy, PAC®185/PAC®186, Straight Quick Disconnect
OD 19
T-8095
44025
O-Ring
OD 20
T-4028
44026
O-Ring
OD 21
T-4029
44507
O-Ring
NS
KT-1073
28499
PAC®186 Cable Leads 6.1m (20’)
NS
KT-1329
28500
PAC®186 Cable Leads 7.6m (25’)
NS
KT-1252
28870
PAC®186 Cable Leads 12.2m (40’)
22
Coolant Liquid
Different types of cable leads available on request
* FULLY INTERCHANGEABLE WITH ORIGINAL PARTS, BUT DIFFERS FROM ORIGINAL DESIGN
** A UNIQUE DESIGN WHICH ENHANCES PERFORMANCE AND DIFFERS FROM OEM DESIGNS
a, b, c, d. – This symbols always point to the part/s which must be used only as a set with another pointed part/s.
O.D.– ON DEMAND – We do not keep these parts in stock, cost is set according to the ordered quantity, delivery time may differ from standard products.
(i)/(ii) – Information about limited distributing of marked part on specific market.
! – Ohmic contact wire is not part of the cable leads.
!!! – Demo is inoperative, for exhibition purposes only!
NS – NOT SHOWN IN THE PICTURE
